เราให้บริการโซลูชั่นครบวงจรจากโมดูลการสื่อสาร, เสาอากาศ, PCB, PCBA และส่วนประกอบทั้งหมดสำหรับ PCB Bom
|
รายละเอียดสินค้า:
การชำระเงิน:
|
| คะแนนแรงดันไฟฟ้า AC IEC: | 690 V | พิกัดแอมแปร์: | 125 ก |
|---|---|---|---|
| เป็นไปตามข้อกำหนด Rohs: | ใช่ | ความกว้างของสินค้า: | 40 มม. |
| ความยาวของผลิตภัณฑ์: | 135 มม. | ความสูงของผลิตภัณฑ์: | 64 มม |

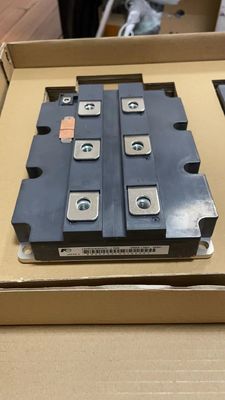

1MBI2400VD-170E 1700V/2400A IGBT Module Dual Configuration Low VCE(sat) High Speed Switching Built-in NTC Isolated Baseplate Industrial Grade for UPS & Solar Inverters
Features
High speed switching
Voltage drive
Low Inductance module structure
Applications
Inverter for Motor Drive
AC and DC Servo Drive Amplifier
Uninterruptible Power Supply
Industrial machines, such as Welding machines
Description
The 1MBI2400VD-170E is a high-power, industrial-grade IGBT (Insulated Gate Bipolar Transistor) module configured with two units in a single package. It is rated for an extremely high voltage of 1700V and a substantial collector current of 2400A, making it engineered for the most demanding power conversion applications.
This module is designed for high efficiency and reliability, featuring a low collector-emitter saturation voltage (VCE(sat)) and high-speed switching capabilities. Key built-in features include a negative temperature coefficient (NTC) thermistor for real-time temperature monitoring and an isolated baseplate for simplified thermal management and easy mounting to a heatsink. Its robust construction ensures long-term performance in harsh industrial environments.
INFORMATION
| Item number | W233262 |
| Catalogue No | NH1GG69V250 |
| Description | DIN NH Standard fuse-link gG Size NH1 690VAC 400VDC 250A live tags Double indicator Body width 40 mm |
| EAN/UPC Code | 8430399026114 |
| Rated voltage AC IEC | 690 V |
| Rated voltage DC IEC | 400 V |
| Ampere Rating | 250 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Speed/Characteristic | gG |
| Fuse Size | NH1 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 80 kA |
| Design Details | live tags |
| Indication System | Yes |
| Indication System Type | Double indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Plain Blades |
| Product Width | 40 mm |
| Product Length | 135 mm |
| Product Height | 64 mm |
| Sell Pack Quantity | 3 EA |
| Sell Pack Weight | 1.26 kg |
| Sell Pack Width | 125 mm |
| Sell Pack Length | 139 mm |
| Sell Pack Height | 70 mm |
| Product group | Low Voltage IEC Fuses |
| Product Weight | 0.42 kg |
| Body/Insulating Material | Ceramic |
| Power Dissipation at Rated Current Value | 20 W |
andnbsp;
Drawing
