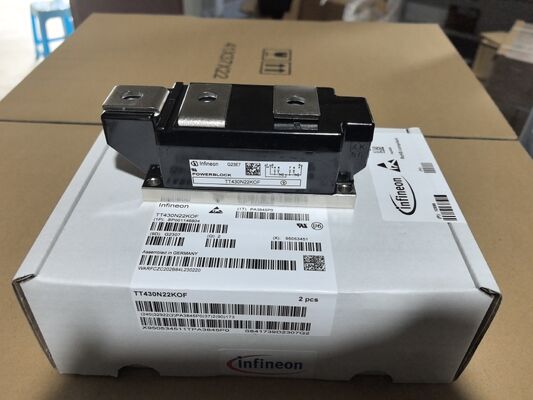

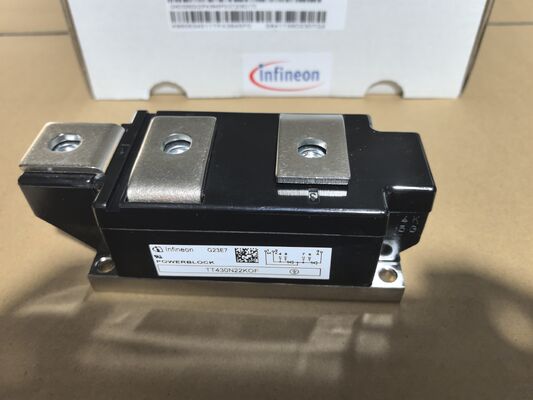

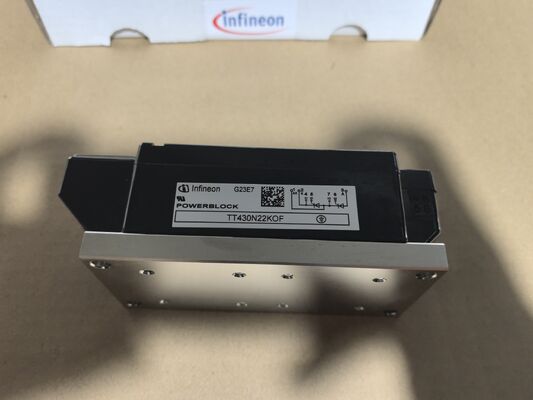

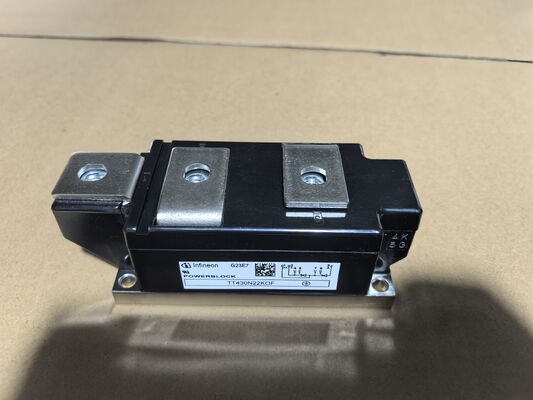

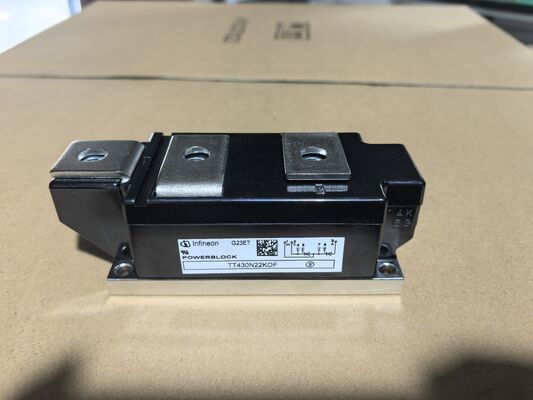

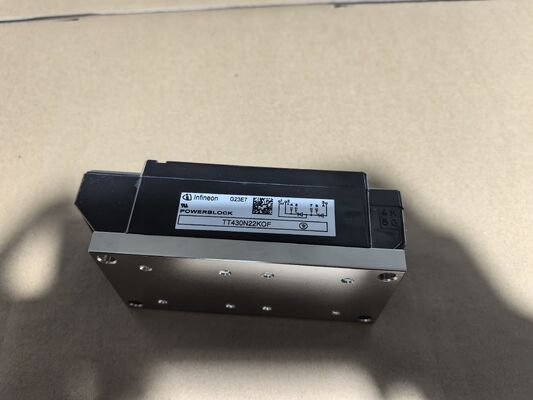

TT430N22KOFXPSA1 2200V 430A HiPak Module Low Vce(sat) High Short Circuit Ruggedness Low Switching Loss Low Inductance Press-Fit Technology For High Power Converters and Rail Traction
Features
Pressure contact technology for high reliability
Advanced Medium Power Technology (AMPT)
Industrial standard package
Electrically insulated base plate
Option: Pre-applied thermal interface material (TlM)
Applications
Soft starter
Rectifier for drives applications
Crowbar applications
Power controllers
Rectifiers for UBS
Battery chargers
Static switches
Bypass swich
Description
The ST330C16C0 is a high-voltage, high-current half-bridge IGBT module engineered for demanding industrial power conversion systems. It features a robust 1600V blocking voltage and a 330A current rating, making it suitable for applications requiring high power handling under elevated voltage conditions. The module utilizes advanced IGBT and diode chips to achieve a low collector-emitter saturation voltage (Vce(sat)) for efficient power conduction and optimized switching performance to control losses. It is designed for maximum reliability, offering high short-circuit ruggedness, an integrated NTC thermistor for accurate thermal monitoring, and a robust package construction to withstand the rigors of industrial environments.
INFORMATION
|
category
|
Discrete semiconductor products
thyristors
SCR - Module
|
|
|
manufacturer
|
Infineon Technologies
|
|
|
series
|
TT
|
|
|
Packaging
|
Tray
|
|
|
Part status
|
On sale
|
|
|
structure
|
Tandem - All SCR
|
|
|
SCR number, diode
|
2 SCRs
|
|
|
Voltage - Fault state
|
2.2 kV
|
|
|
Current - On-State (It (AV)) (Max)
|
430 A
|
|
|
Current - Normal State (It (RMS)) (Max)
|
800 A
|
|
|
Voltage - Gate Trigger (Vgt) (Max)
|
2.2 V
|
|
|
Current - Gate Trigger (IGT) (Max)
|
250 mA
|
|
|
Current - Non-repeating surge 50, 60Hz (Itsm)
|
14000A @ 50Hz
|
|
|
Current - Hold (Ih) (max)
|
300 mA
|
|
|
Operating temperature
|
125°C(TJ)
|
|
|
Mounting type
|
Base mounting
|
|
|
Package/Enclosure
|
module
|
Drawing
