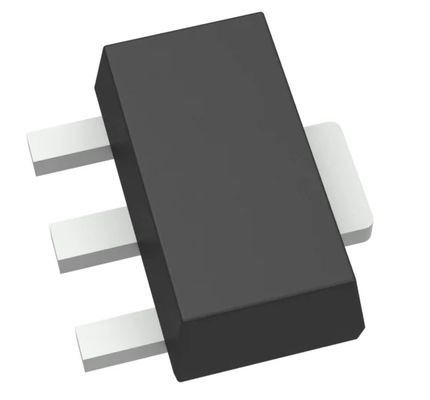

BCX5416TA 60V 1A NPN Transistor with High hFE 100-250 625mW Power Low Noise SOT-89-3 Package Halogen-Free AEC-Q101 Qualified Tape & Reel Packaging
Features
• BVCEO > 45V, 60V & 80V
• IC = 1A Continuous Collector Current
• ICM = 2A Peak Pulse Current
• Low Saturation Voltage VCE(sat) < 500mV @ 0.5A
• Gain Groups 10 and 16
• Epitaxial Planar Die Construction
• Complementary PNP Types: BCX51, 52, and 53
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
Applications
• Medium power switching or amplification applications
• AF driver and output stages
Description
The BCX5416TA is a high-performance NPN bipolar junction transistor designed for general-purpose amplification and switching applications. Housed in a compact SOT-89-3 surface-mount package, it offers an excellent combination of high voltage capability, current gain and power dissipation, making it suitable for various analog and power management circuits.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|

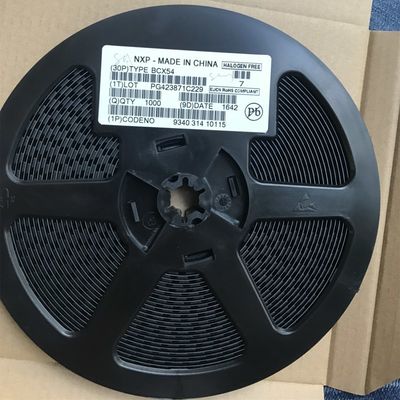

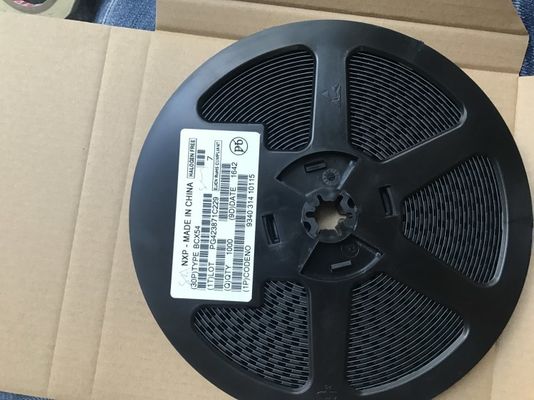

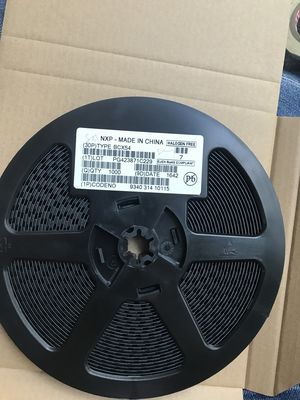

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Transistor Type
|
|
|
|
Current - Collector (Ic) (Max)
|
1 A
|
|
|
Voltage - Collector Emitter Breakdown (Max)
|
45 V
|
|
|
Vce Saturation (Max) @ Ib, Ic
|
500mV @ 50mA, 500mA
|
|
|
Current - Collector Cutoff (Max)
|
100nA (ICBO)
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
100 @ 150mA, 2V
|
|
|
Power - Max
|
1 W
|
|
|
Frequency - Transition
|
150MHz
|
|
|
Operating Temperature
|
-65°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-243AA
|
|
|
Supplier Device Package
|
SOT-89-3
|
|
|
Base Product Number
|
Drawing
