| การทำงาน: | ก้าวขึ้นไปก้าวลง | การกำหนดค่าเอาต์พุต: | บวกหรือลบ |
|---|---|---|---|
| ทอพอโลยี: | เจ้าชู้เพิ่ม | ประเภทเอาต์พุต: | ปรับได้ |
| จำนวนเอาต์พุต: | 1 | ||
| เน้น: | High-Speed IGBT MOSFET Gate Drive Optocoupler,SO6 Package Optocoupler with UVLO Protection,5V to 30V Supply Gate Drive Optocoupler |
||

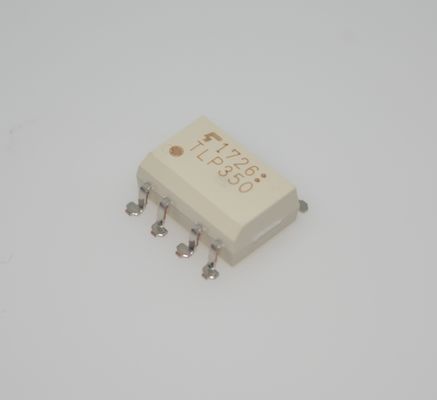

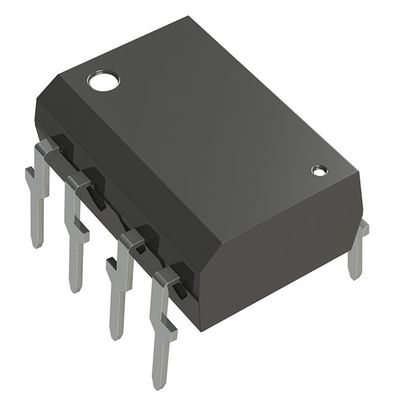

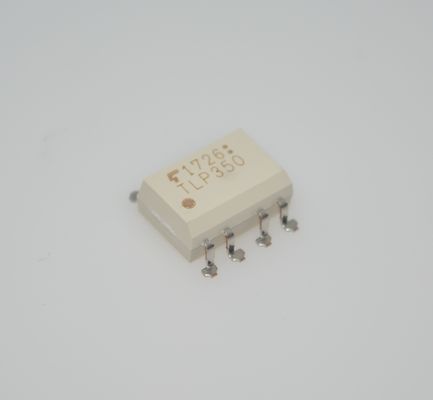

TLP350H(F) High-Speed 1.0A IGBT/MOSFET Gate Drive Optocoupler with 0.5andmicro;s Max Delay 50kV/andmicro;s CMR -40anddeg;C to 110anddeg;C Range 5V to 30V Supply SO6 Package and Under Voltage Lockout (UVLO) Protection
andnbsp;
Features
Buffer logic type (totem pole output)
Output peak current: andplusmn;2.5 A (max)
Operating temperature: -40 to 125℃
Supply current: 3 mA (max)
Supply voltage: 15 to 30 V
Threshold input current: 5 mA (max)
Propagation delay time: 500 ns (max)
Common-mode transient immunity: andplusmn;20 kV/andmicro;s (min)
Isolation voltage: 3750 Vrms (min)
andnbsp;
Applications
andbull; Industrial Inverters
andbull; Air Conditioner Inverters
andbull; MOSFET Gate Drivers
andbull; IGBT Gate Drivers
andbull; Induction Cooktop and Home Appliances
andnbsp;
Description
The TLP350H is a photocoupler in a DIP8 package that consists of a GaAℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance and specifications at temperatures up to 125 .The TLP350H has an internal Faraday shield that provides a guaranteed Common-mode transient immunity of andplusmn;20 kV/andmicro;s. It has a totem-pole output that can both sink and source current.
The TLP350H is ideal for IGBT of small capacity to middle capacity and power MOSFET gate drive.
andnbsp;
INFORMATION
|
Category
|
andnbsp;
|
|
|
Mfr
|
andnbsp;
|
|
|
Series
|
-
|
andnbsp;
|
|
Packaging
|
Tube
|
andnbsp;
|
|
Part Status
|
Active
|
andnbsp;
|
|
Technology
|
Optical Coupling
|
andnbsp;
|
|
Number of Channels
|
1
|
andnbsp;
|
|
Voltage - Isolation
|
3750Vrms
|
andnbsp;
|
|
Common Mode Transient Immunity (Min)
|
20kV/andmicro;s
|
andnbsp;
|
|
Propagation Delay tpLH / tpHL (Max)
|
500ns, 500ns
|
andnbsp;
|
|
Pulse Width Distortion (Max)
|
350ns
|
andnbsp;
|
|
Rise / Fall Time (Typ)
|
15ns, 8ns
|
andnbsp;
|
|
Current - Output High, Low
|
3mA, 3mA
|
andnbsp;
|
|
Current - Peak Output
|
2.5A
|
andnbsp;
|
|
Voltage - Forward (Vf) (Typ)
|
1.55V
|
andnbsp;
|
|
Current - DC Forward (If) (Max)
|
20 mA
|
andnbsp;
|
|
Voltage - Output Supply
|
15V ~ 30V
|
andnbsp;
|
|
Operating Temperature
|
-40anddeg;C ~ 125anddeg;C
|
andnbsp;
|
|
Mounting Type
|
Through Hole
|
andnbsp;
|
|
Package / Case
|
8-DIP (0.300andquot;, 7.62mm)
|
andnbsp;
|
|
Supplier Device Package
|
8-DIP
|
andnbsp;
|
|
Base Product Number
|
andnbsp;
Drawing
