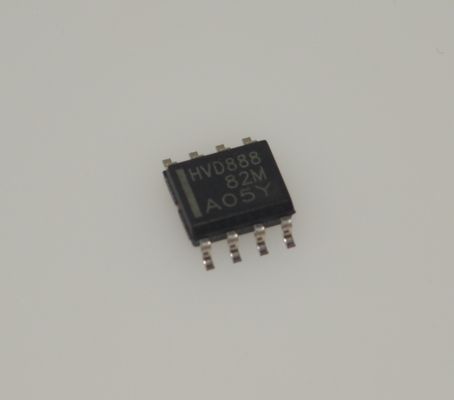

SN65HVD888DR 3.3V CAN SIC Transceiver with 8Mbps Speed Low EMI Standby Mode Wide Temp Range High ESD Protection AEC-Q100 Qualified and Robust Fault Tolerance

SN65HVD888DR 3.3V CAN SIC Transceiver with 8Mbps Speed Low EMI Standby Mode Wide Temp Range High ESD Protection AEC-Q100 Qualified and Robust Fault Tolerance

andnbsp;

Features

andbull; Exceeds requirements of EIA-485 standard

andbull; Bus-polarity correction within 76ms (tFS)

andbull; Data rate: 300bps to 250kbps

andbull; Works with two configurations:

andnbsp; andndash; Failsafe resistors only

andnbsp; andndash; Failsafe and differential termination resistors

andbull; Up to 256 nodes on a bus (1/8 Unit Load)

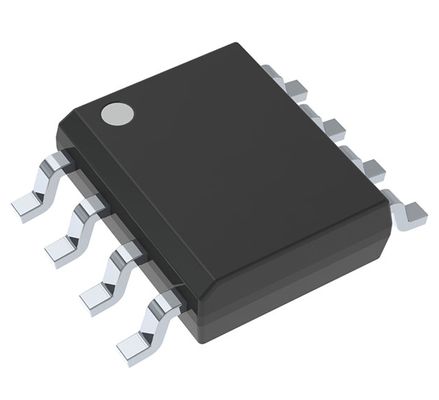

andbull; SOIC-8 Package for backward compatibility

andbull; Bus-pin protection:

andnbsp; andndash; andplusmn;16kV HBM protection

andnbsp; andndash; andplusmn;12kV IEC61000-4-2 Contact discharge

andnbsp; andndash; +4kV IEC61000-4-4 Fast transient burst

andnbsp;

Applications

andbull; E-Metering networks

andbull; Industrial automation

andbull; HVAC systems

andbull; DMX512-networks

andbull; Process control

andbull; Battery-powered applications

andbull; Motion control

andbull; Telecom equipment

andnbsp;

Description

The SN65HVD888 is a low-power RS-485 transceiver with automatic bus-polarity correction and transient protection. Upon hot plug-in, the device detects and corrects the bus polarity within the first 76ms of bus idling. On-chip transient protection protects the device against IEC61000 ESD and EFT transients. This device has robust drivers and receivers for demanding industrial applications. The bus pins are robust to electrostatic discharge (ESD) events, with high levels of protection to Human-Body Model (HBM), Air-Gap Discharge, and Contact Discharge specifications.

The device combines a differential driver and a differential receiver, which operate together from a single 5V power supply. The driver differential outputs and the receiver differential inputs are connected internally to form a bus port suitable for half-duplex (two-wire bus) communication. The device features a wide common-mode voltage range making the device suitable for multi-point applications over long cable runs. The SN65HVD888 is available in an SOIC-8 package, and is characterized from andndash;40anddeg;C to 125anddeg;C.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
